We are developing, manufacturing, and supplying measuring/inspection systems
that achieve quality enhancement, productivity increase, and cost reduction through precise
and effective data collection and analysis in various industries.
Applying optimized solutions such as contact, contactless, optical, non-disruptive, and eddy current,
we provide reliable data to support our customers’ success.

Measurement SYSTEM

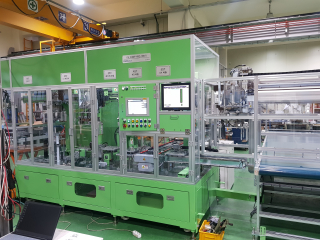

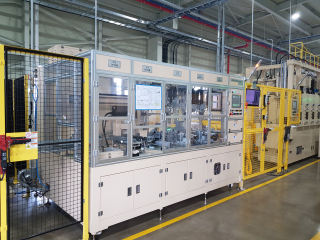

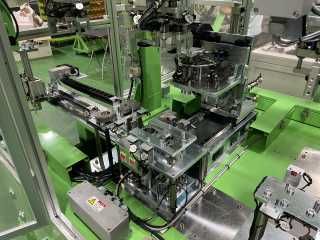

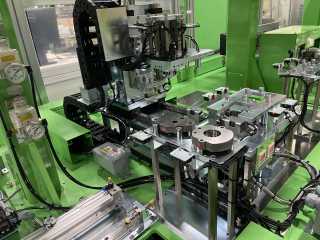

EOP HOUS'G & COVER MEASUR'G MC

MEASUREMENT OF THE DIAMETER, HEIGHT, AND FLATNESS OF THE EOP HOUS'G & COVER ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • PICK & PLACE TRANSFER : SERVO MOTOR
  • MEASUR'G STATION : 2SET (MEA. CELL + PROBE)
  • NG CONVEYOR : 5EA (2SET)
  • QR CODE MARK'G & READ'G

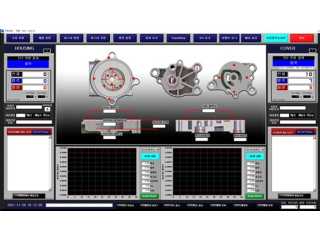

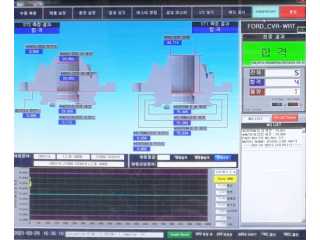

  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, LENGTH, FLATNESS

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

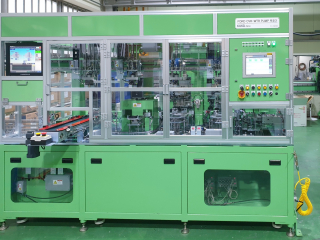

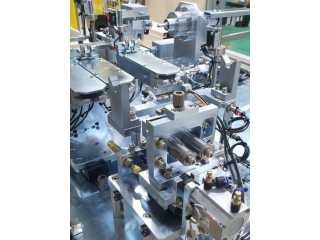

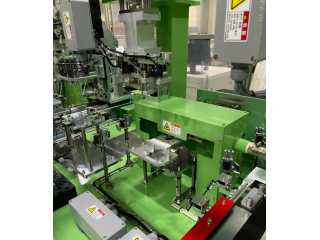

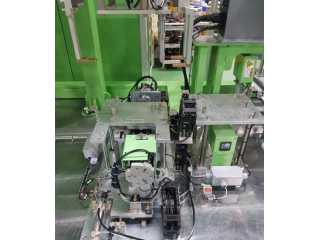

WATER PUMP COVER MEASUR'G MC

MEASUREMENT OF THE INNER DIAMETER AND GEOMETRIC TOLERANCES OF THE WATER PUMP COVER ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • PICK & PLACE TRANSFER : SERVO MOTOR
  • MEASUR'G STATION : 2SET (MEA. CELL + PROBE)
  • NG CONVEYOR : 6EA-QR CODE MARK'G & READ'G
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, LENGTH, SQUARENESS, CONCENTRICITY, FLATNESS

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

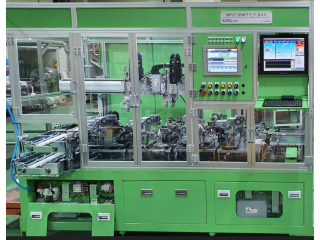

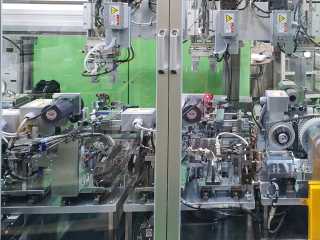

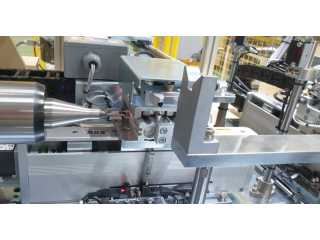

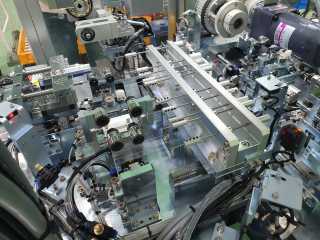

INPUT SHAFT FOOL PROOF INSPECTION MC

FOOLPROOF INSPECTION OF THE INPUT SHAFT ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • PICK & PLACE TRANSFER : SERVO MOTOR
  • INSPECTION STATION : 2SET (INSPEC. UNIT + SPLINE GAGE)
  • MEASUR'G STATION : MEA. CELL
  • NG CARRIER : 6EA (2SET)
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, OIL/CENTER HOLE PENETRATION, SPLINE

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

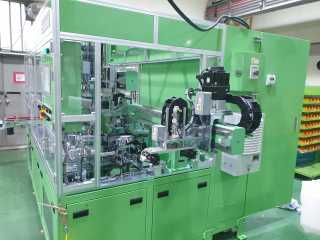

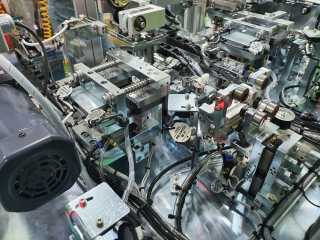

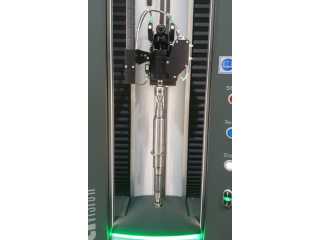

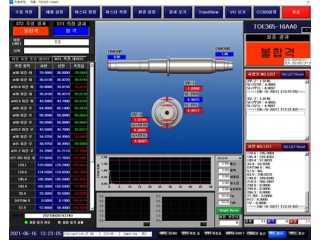

ROTOR SHAFT MEASUR'G MC (OPTICAL+CONTACT+CRACK)

MEASUREMENT OF THE DIMENSIONS, GEOMETRIC TOLERANCES, AND CRACK INSPECTION OF THE ROTOR SHAFT ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • PROCESS CONECTION : ROBOT FOR INDUSTRIAL
  • PICK & PLACE TRANSFER : SERVO MOTOR
  • MEASUR'G STATION : 2SET (OPTICAL+MEA. CELL)
  • INSPECTION STATION : CRACK SENSOR
  • QR CODE MARK'G & READ'G
  • NG CARRIER : 6EA
  • DATA TRACK'G MANAGEMENT & DISPLAY

Items for Measurement : DIMENSIONS, GEOMETRIC TOLERANCES, CRACK

DIMENSION REPEATABILITY : Ø 0.0003㎜, L 0.0012㎜

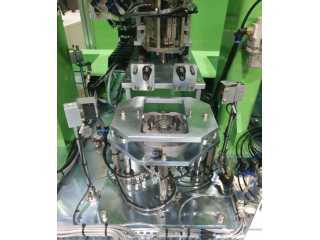

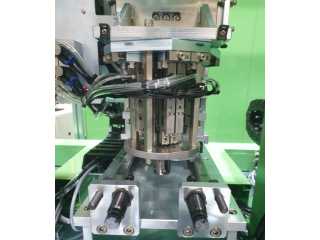

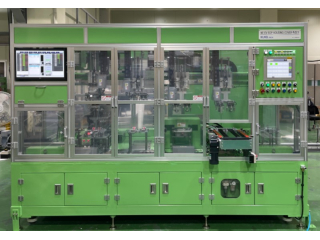

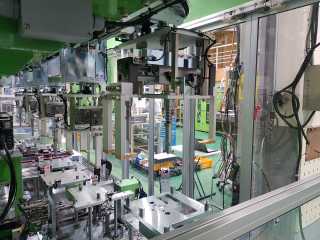

OIL PUMP HOUS'G MEASUR'G MC

MEASUREMENT OF THE DIAMETER, LENGTH AND GEOMETRIC TOLERANCES OF THE OIL PUMP HOUS'G ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • PICK & PLACE TRANSFER : SERVO MOTOR
  • MEASUR'G STATION : MEA. CELL + PROBE
  • AUTO ZERO MASTER
  • NG CONVEYOR : 5EA
  • OUTPUT CARRIER CONVEYOR : 64EA
  • QR CODE MARK'G & READ'G
  • DATA TRACK'G MANAGEMENT & DISPLAY

Items for Measurement : DIAMETER, LENGTH, PARALLELISM, FLATNESS, SQUARENESS

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE
