We are developing, manufacturing, and supplying measuring/inspection systems
that achieve quality enhancement, productivity increase, and cost reduction through precise
and effective data collection and analysis in various industries.
Applying optimized solutions such as contact, contactless, optical, non-disruptive, and eddy current,
we provide reliable data to support our customers’ success.

Measurement SYSTEM

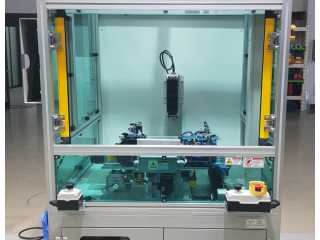

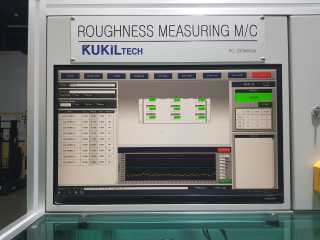

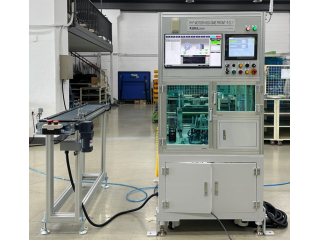

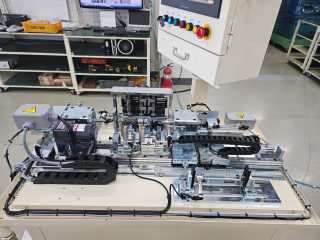

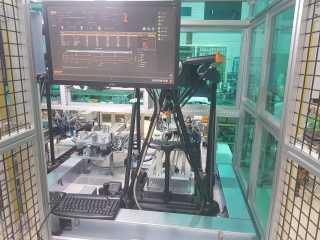

BATTERY ENDPLATE ROUGHNESS INSPECTION MC

SURFACE ROUGHNESS INSPECTION OF THE BATTERY ENDPLATE ELEMENT

Characteristics

  • SEMI AUTO SYSTEM
  • 2 AXIS SLIDE TRANSFER : SERVO MOTOR
  • INSPECTION STATION : LASER 3D SENSOR
  • QR CODE READ'G
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : SURFACE ROUGHNESS

INSPECTION RANGE : X=4㎜, Y=4㎜, Z=1.4㎜ (HIGH 0.7㎜)

REPEATABILITY (HEIGHT DIFFERENCE) : 0.0001㎜

LINEARITY (HEIGHT DIFFERENCE) : ±0.0028㎜

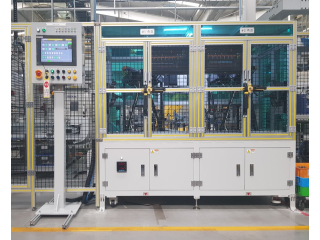

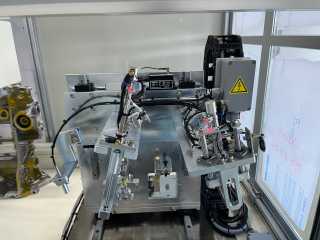

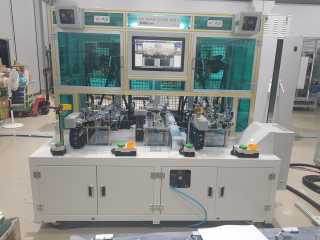

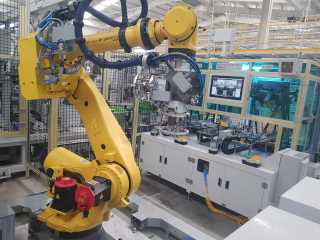

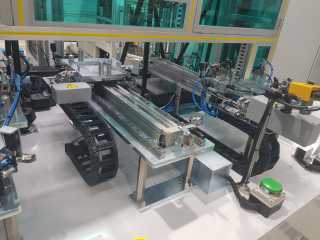

TRANSMISSION REAR COVER MEASUR'G MC (IN-LINE CMM)

MEASUREMENT OF THE DIMENSIONS AND GEOMETRIC TOLERANCES OF THE TRANSMISSION REAR COVER ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • SHUTTLE TRANSFER : AIR CYLINDER
  • MEASUR'G STATION : 2SET (IN-LINE CMM)
  • AUTO ZERO MASTER
  • QR CODE READ'G

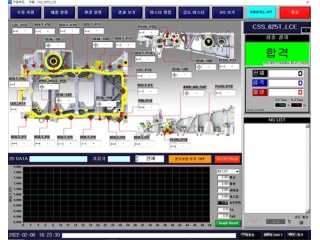

  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, FLATNESS, RUNOUT, POSITION, CONCENTRICITY

MEASUREMENT RANGE : X,Y=Ø300㎜, Z=150㎜

COMPARISON UNCERTAINTY : ±0.002㎜

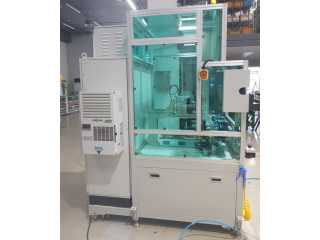

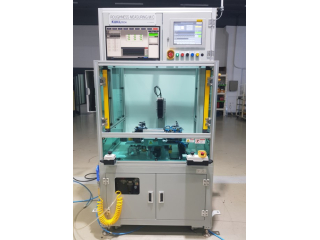

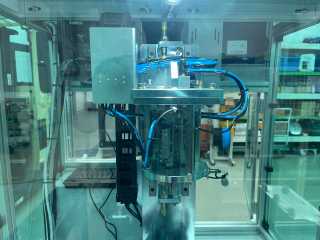

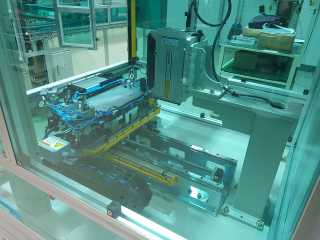

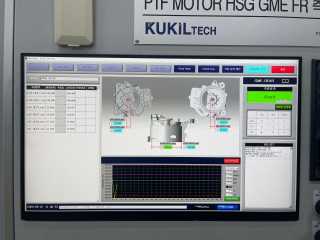

MOTOR HOUS'G MEASUR'G MC

MEASUREMENT OF THE DIAMETER OF THE MOTOR HOUS'G ELEMENT

Characteristics

  • SEMI AUTOMATIC SYSTEM
  • SHUTTLE TRANSFER : AIR CYLINDER
  • MEASUR'G STATION : MEA. CELL
  • QR CODE READ'G
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

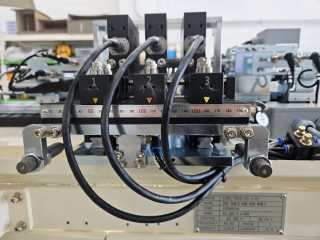

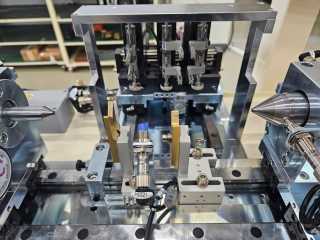

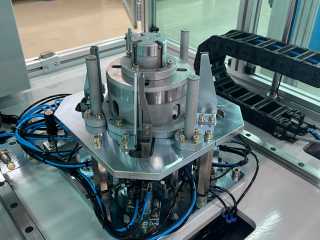

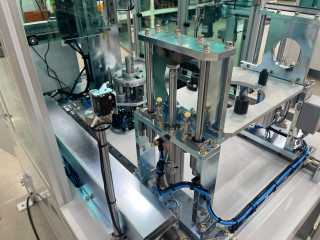

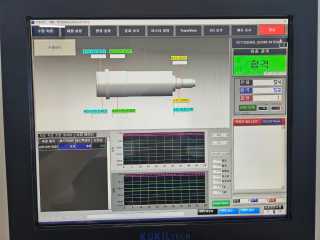

PINION SHAFT MEASUR'G MC

MEASUREMENT OF THE OUTER DIAMETER, RUNOUT, AND CONCENTRICITY OF THE PINION SHAFT ELEMENT

Characteristics

  • SEMI AUTOMATIC SYSTEM
  • V BLOCK CENTER'G : AIR CYLINDER
  • MEASUR'G STATION : MEA. HEAD
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, RUNOUT, CONCENTRICITY

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

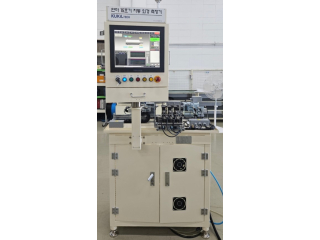

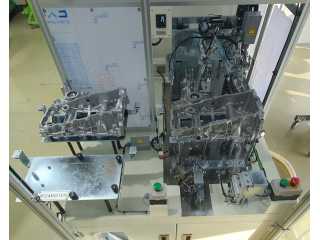

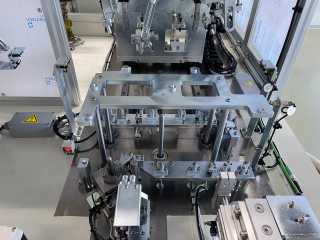

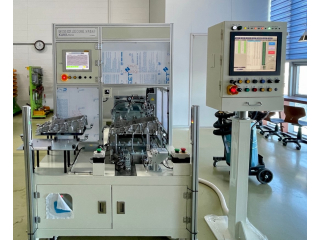

CRANK CASE PART INSPECTION MC

INSPECTION FOR MISSING ASSEMBLY PARTS OF THE CRANK CASE ELEMENT

Characteristics

  • SEMI AUTOMATIC SYSTEM
  • SHUTTLE TRANSFER : AIR CYLINDER
  • MEASUR'G STATION : PLUG GAGE + PROBE + THREAD CHECKER
  • QR CODE READ'G
  • NG STAMP MARK'G
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : HEIGHT OF ASSEMBLY PARTS, PRESENCE, SCREW, HOLE PENETRATION

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE
