We are developing, manufacturing, and supplying measuring/inspection systems
that achieve quality enhancement, productivity increase, and cost reduction through precise
and effective data collection and analysis in various industries.
Applying optimized solutions such as contact, contactless, optical, non-disruptive, and eddy current,
we provide reliable data to support our customers’ success.

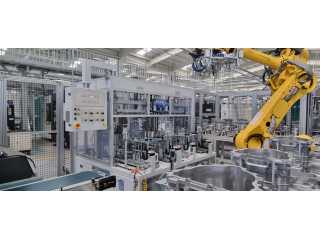

Measurement SYSTEM

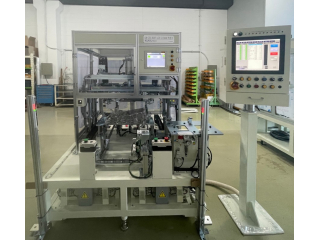

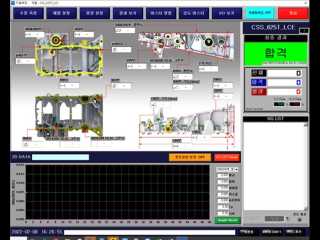

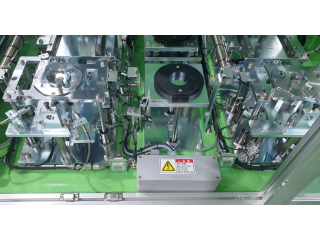

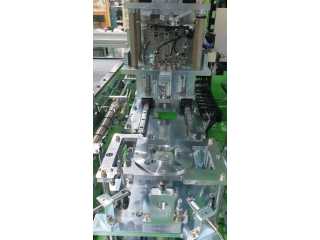

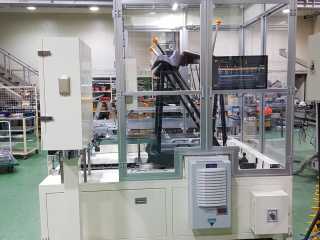

CRANK CASE PART INSPECTION MC

MEASUREMENT OF THE DIMENSIONS AND GEOMETRIC TOLERANCES OF THE CRANK CASE ELEMENT

Characteristics

  • SEMI AUTOMATIC SYSTEM
  • SHUTTLE TRANSFER : SERVO MOTOR + AIR CYLINDER
  • MEASUR'G STATION : PLUG GAGE + PROBE
  • QR CODE READ'G
  • NG STAMP MARK'G

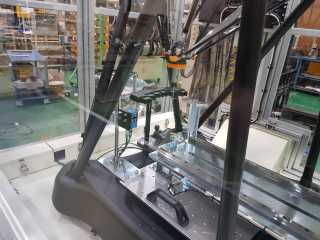

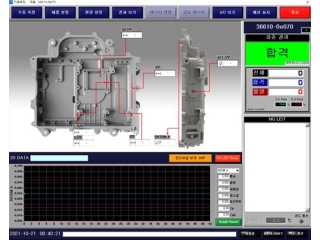

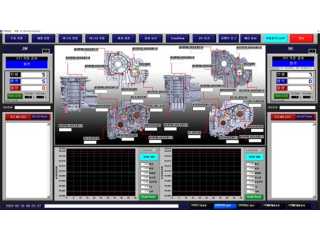

  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, HEIGHT, ANGLE, FLATNESS

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

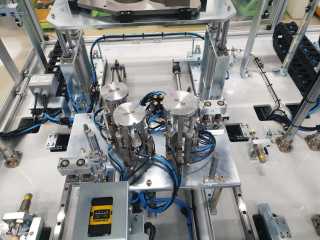

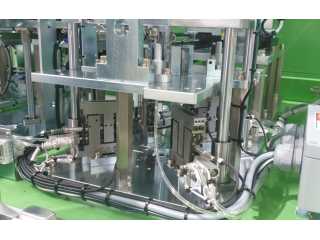

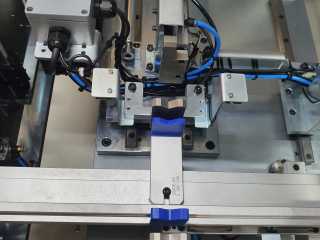

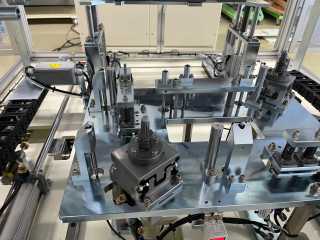

EV MOTOR HOUS'G MEASUR'G MC

MEASUREMENT OF THE DIAMETER AND HEIGHT OF THE EV MOTOR HOUS'G ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • SHUTTLE TRANSFER : SERVO MOTOR
  • MEASUR'G STATION : MEA. CELL + PROBE
  • QR CODE READ'G
  • OK PUNCH MARK'G
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, HEIGHT, PIN/BUSH HOLE DIAMETER

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

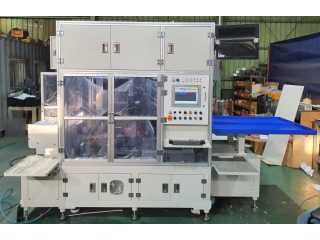

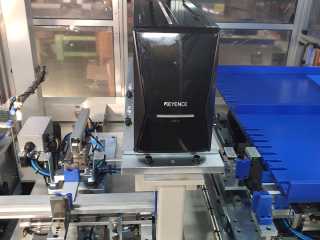

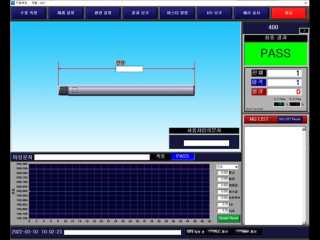

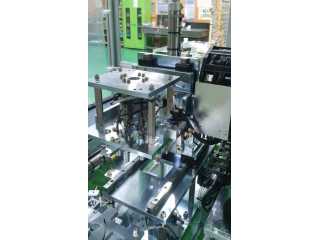

ALUMINUM TUBE MEASUR'G MC

MEASUREMENT AND MARKING OF THE LENGTH OF THE ALUMINUM TUBE ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • LIFT & CARRY TRANSFER : AIR CYLINDER
  • MEASUR'G STATION : DIGITAL PROBE
  • INPUT HOPPER CARRIAGE : 340EA
  • OUTPUT CHUTE : 200EA
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : LENGTH

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

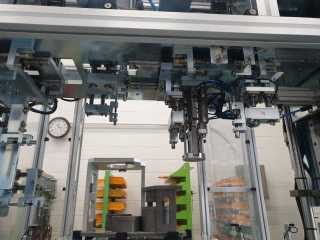

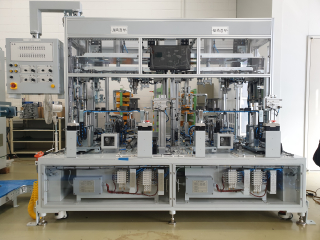

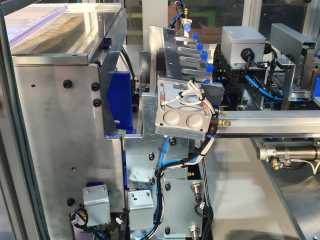

OIL PIMP COVER MEASUR'G MC

MEASUREMENT OF THE DIAMETER, HEIGHT, AND GEOMETRIC TOLERANCES OF THE OIL PUMP COVER ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • PICK & PLACE TRANSFER : SERVO MOTOR
  • MEASUR'G STATION : 2SET (MEA. CELL + PROBE)
  • AUTO ZERO MASTER
  • QR CODE READ'G
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, LENGTH, ROUNDNESS, CYLINDRICITY, CONCENTRICITY, FLATNESS

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

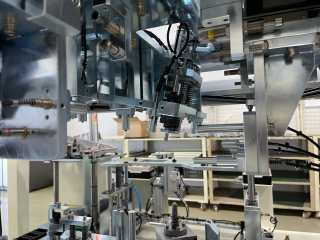

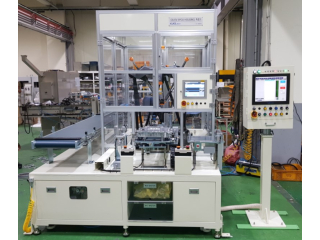

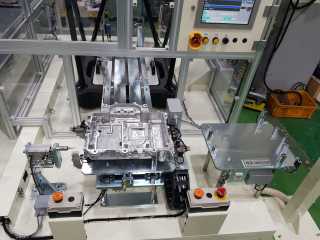

EV EPCU HOUS'G MEASUR'G MC (IN-LINE CMM)

MEASUREMENT OF THE DIMENSIONS AND GEOMETRIC TOLERANCES OF THE EV EPCU HOUS'G ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • SHUTTLE TRANSFER : AIR CYLINDER
  • MEASUR'G STATION : IN-LINE CMM
  • OK MARK'G STATION
  • NG CONVEYOR : 5EA
  • QR CODE READ'G
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, LENGTH, ROUNDNESS, CYLINDRICITY, CONCENTRICITY, FLATNESS

MEASUREMENT RANGE : X, Y=Ø300㎜, Z=300㎜

COMPARISON UNCERTAINTY : ±0.002㎜
