Measurement SYSTEM

Measurement SYSTEM

We are developing, manufacturing, and supplying measuring/inspection systems
that achieve quality enhancement, productivity increase, and cost reduction through precise
and effective data collection and analysis in various industries.
Applying optimized solutions such as contact, contactless, optical, non-disruptive, and eddy current,
we provide reliable data to support our customers’ success.

Measurement SYSTEM

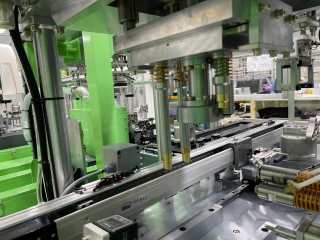

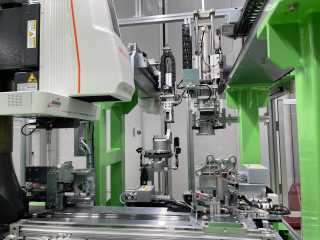

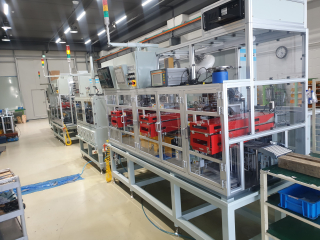

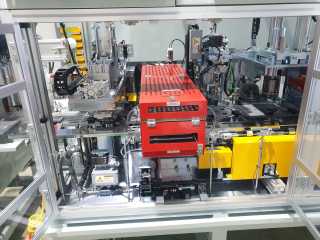

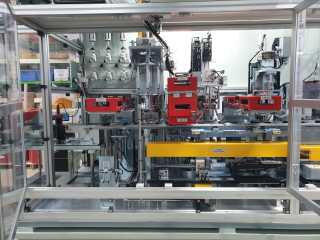

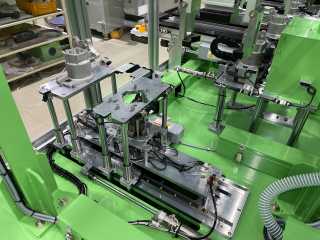

EOP HOUS'G MEASUR'G MC (LEAK TEST + CONTACT+IN-LINE CMM)

LEAK INSPECTION, MEASUREMENT OF DIMENSIONS, AND GEOMETRIC TOLERANCES OF THE EOP HOUS'G ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM (MANUAL SELECT)
  • PICK & PLACE TRANSFER : SERVO MOTOR
  • INPUT STOKER : 30EA
  • MEASUR'G & INSPECTION STATION : 3SET (CMM+CONTACT+LEAK)
  • NG CONVEYOR : 5EA (2SET)
  • QR CODE READ'G

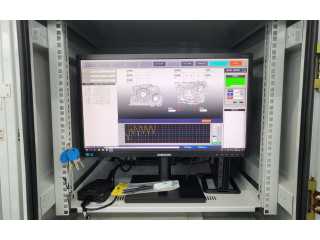

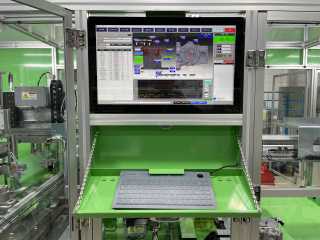

  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, LENGTH, ROUNDNESS, SQUARENESS, LEAK

MEASUREMENT RANGE : X=120㎜, Y=120㎜, Z=80㎜ LEAK SEPC : 0.8㏄/2bar

DIMENSION REPEATABILITY : ≤ 0.002㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

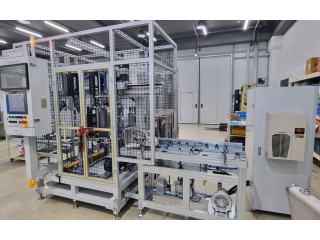

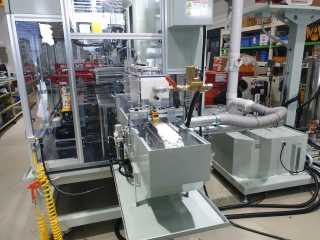

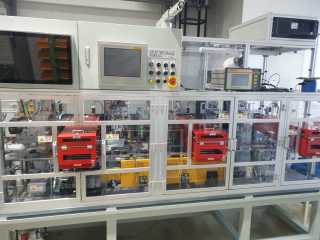

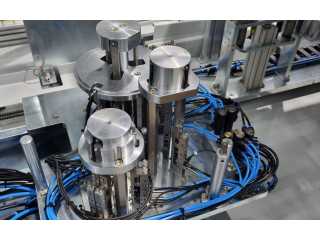

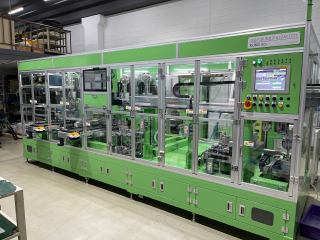

BRG INNER RING WASH'G & MEASUR'G MC

CLEANING, INNER DIAMETER MEASUREMENT, RACEWAY MEASUREMENT, AND HEAT TREATMENT INSPECTION OF THE BEARING INNER RING ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • SLIDE & CARRY TRANSFER, SERVO MOTOR
  • INPUT CONVEYOR : WASH'G OIL & AIR HIGH PRESSURE SPRAY
  • VISUAL INSPECTION STATION : FIBER UNIT
  • MEASUR'G STATION : 2SET (AIR GAGE + MEA. UNIT)
  • OUTPUT CONVEYOR : HEAT TREATMENT INSPECTION
  • NG CHUTE : 5EA (4SET)
  • DATA TRACK'G MANAGEMENT & DISPLAY

Items for Measurement : DIAMETER, RACEWAY, VISUAL, HEAT TREATMENT

COMPARISON INSPECTION OF VISUAL AND HEAT TREATMENT INSPECTION

DIMENSION REPEATABILITY : ≤ 0.002㎜ (EVALUATED ON THE MASTER)

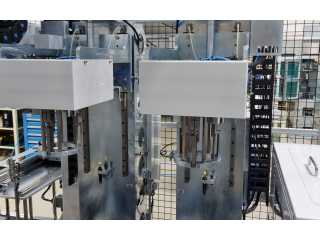

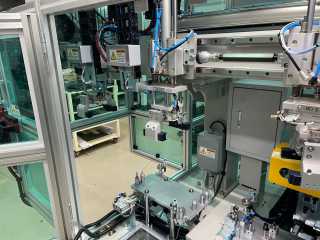

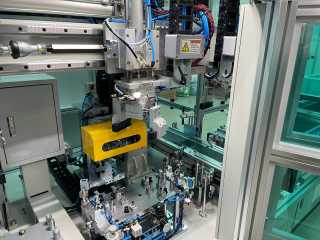

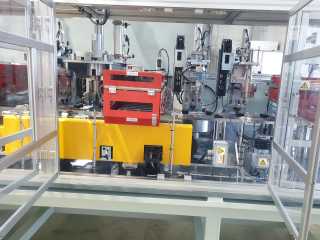

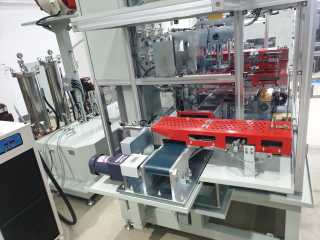

BRG OUTER RING MEASUR'G & CRACK INSPECTION MC

CLEANING, INNER DIAMETER MEASUREMENT, RACEWAY MEASUREMENT, CRACK AND HEAT TREATMENT INSPECTION OF THE BEARING INNER RING ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • SLIDE & CARRY TRANSFER : SERVO MOTOR
  • MEASUR'G STATION : 2SET (MEA. UNIT + CELL)
  • VISUAL INSPECTION STATION : FIBER UNIT

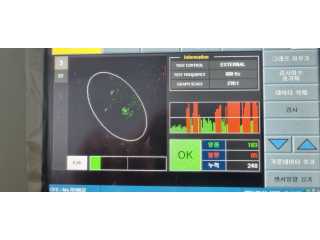

  • CRACK INSPECTION STATION : CRACK SENSOR UNIT
  • HEAT TREATMENT INSPECTION STATION
  • NG CHUTE : 3EA (4SET)

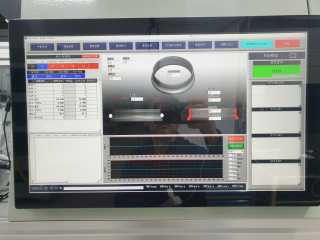

  • DATA TRACK'G MANAGEMENT & DISPLAY

Items for Measurement : DIAMETER, ROUNDNESS, RACEWAY, VISUAL, CRACK, HEAT TREATMENT

COMPARISON INSPECTION OF VISUAL AND HEAT TREATMENT INSPECTION

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

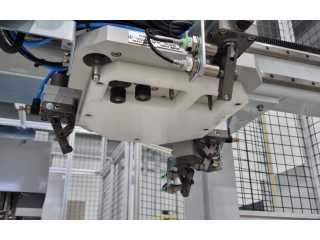

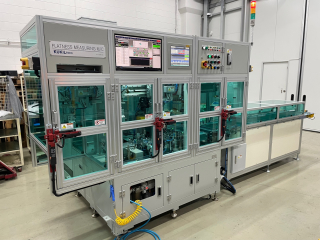

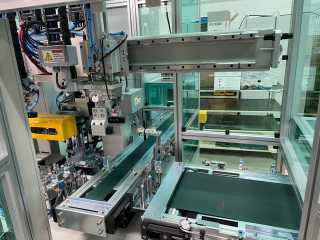

BRG OUTER RING MEASUR'G & CRACK INSPECTION MC

MEASUREMENT OF THE INNER DIAMETER OF THE TRANSMISSION CASE ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • PICK & PLACE TRANSFER : SERVO MOTOR
  • MEASUR'G STATION : MEA. CELL
  • QR CODE MARK'G & READ'G
  • OK OUTPUT STOKER : 3EA
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : BORE DIAMETER, PIN HOLE DIAMETER

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

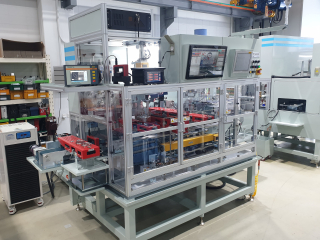

BATTERY ENDPLATE FLATNESS MEASUR'G MC

MEASUREMENT OF THE FLATNESS OF THE BATTERY ENDPLATE ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • PICK & PLACE TRANSFER : AIR CYLINDER
  • MEASUR'G STATION : PROBE
  • NG CONVEYOR : 10EA
  • OK OUTPUT CONVEYOR : 15EA
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : FLATNESS

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE
