We are developing, manufacturing, and supplying measuring/inspection systems
that achieve quality enhancement, productivity increase, and cost reduction through precise
and effective data collection and analysis in various industries.
Applying optimized solutions such as contact, contactless, optical, non-disruptive, and eddy current,
we provide reliable data to support our customers’ success.

Measurement SYSTEM

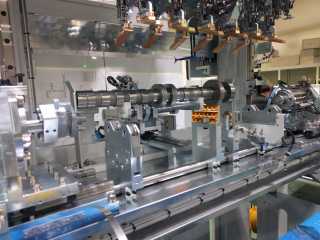

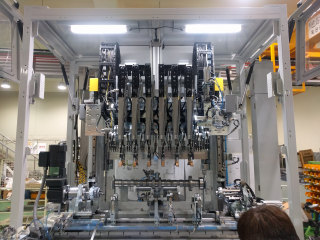

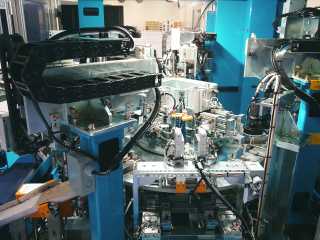

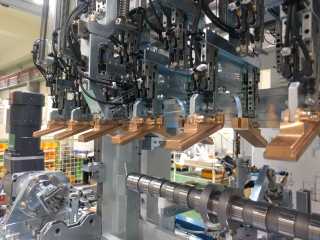

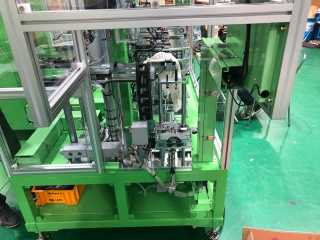

CRANK SHAFT MEASUR'G MC

MEASUREMENT OF THE DIMENSIONS AND GEOMETRIC TOLERANCES OF THE CRANK SHAFT ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM

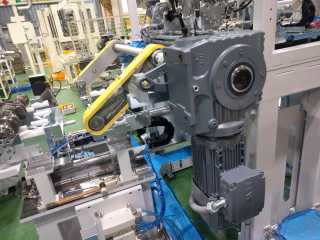

  • SWING ARM TRANSFER : WORM GEAR MOTOR
  • MEASUR'G STATION : MEA. CELL
  • AUTO ZERO MASTER

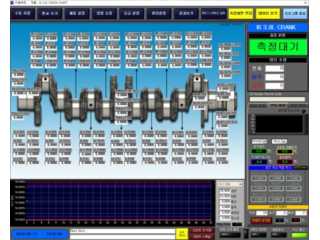

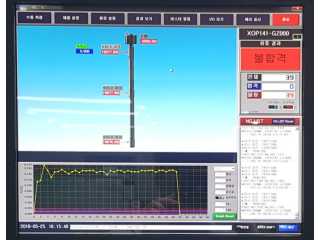

  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, THICKNESS, RUNOUT, CYLINDRICITY, ROUNDNESS, PARALLELISM, CONCENTRICITY.

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

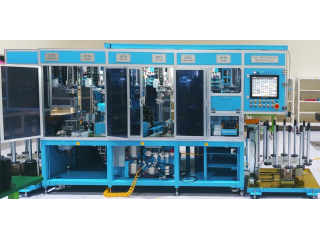

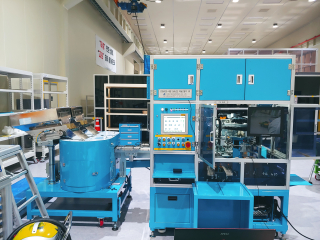

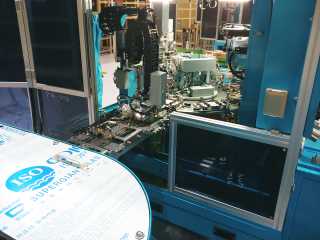

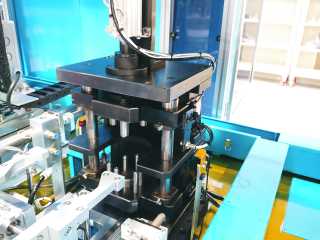

COMPRESSOR CONROD MEASUR'G MC

MEASUREMENT OF THE DIMENSIONS AND GEOMETRIC TOLERANCES OF THE COMPRESSOR CONROD ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • TURN TABLE : INDEX DRIVE
  • MEASUR'G STATION : PLUG + PROBE
  • INSPECTION STATION : GONO GAGE
  • INPUT CARRIAGE : 2SET 500EA (PART FEEDER + HOPPER)
  • NG STORAGE : 50EA

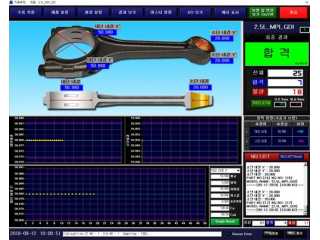

  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, GONO GAGE

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE

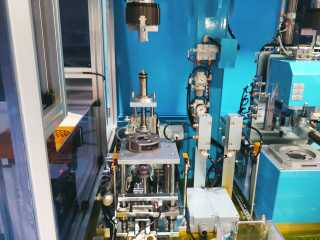

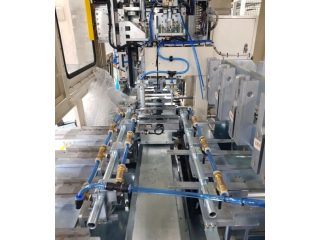

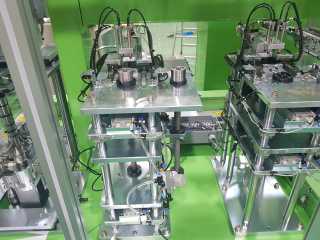

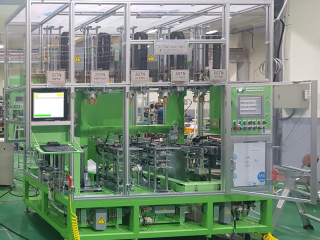

CARRIER PLANT MEASUR'G MC

MEASUREMENT OF THE DIMENSIONS AND GEOMETRIC TOLERANCES OF THE CARRIER PLANT ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • PICK & PLACE TRANSFER : AIR CYLINDER
  • MEASUR'G STATION : PLUG + PROBE
  • INSPECTION STATION : GO GAGE
  • INPUT & OUTPUT MAGAZINE : 110EA
  • NG OUTPUT CHUTE : 5EA
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, GO GAGE

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

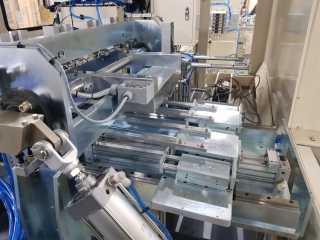

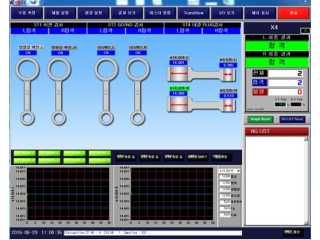

CONROD POST PROCESS MEASUR'G MC

MEASUREMENT OF THE DIMENSIONS AND GEOMETRIC TOLERANCES OF THE CONROD ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM-SLIDE & CARRY TRANSFER, SERVO MOTOR
  • MEASUR'G STATION : 4SET (MEA. CELL)
  • NG OUTPUT CHUTE : 5EA

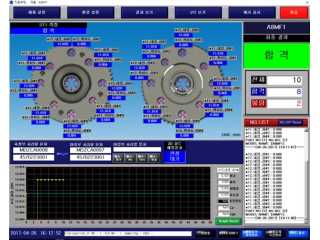

  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

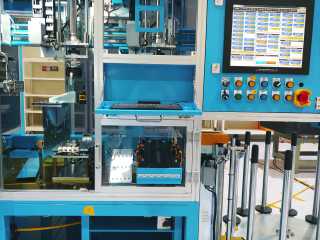

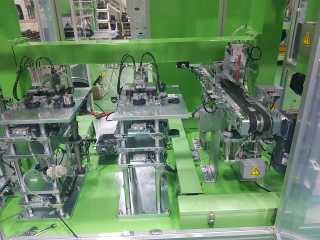

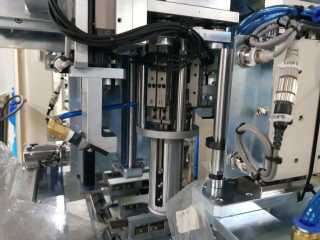

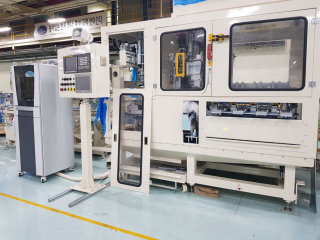

VDOP PUMP SHAFT MEASUR'G MC

MEASUREMENT OF THE DIMENSIONS AND GEOMETRIC TOLERANCES OF THE VDOP PUMP ELEMENT

Characteristics

  • FULL AUTOMATIC SYSTEM
  • PICK & PLACE TRANSFER : SERVO MOTOR
  • MEASUR'G STATION : 2SET (PROBE)
  • NG STAMP MARK'G
  • NG CONVEYOR : 10EA
  • DATA TRACK'G MANAGEMENT & DISPLAY
  • STATISTICAL PROCESS & QUALITY CONTROL (SPC)

Items for Measurement : DIAMETER, LENGTH, SQUARENESS

DIMENSION REPEATABILITY : ≤ 0.001㎜ (EVALUATED ON THE MASTER)

GEOMETRIC DIMENSION REPEATABILITY : 20% OF TOLERANCE
